風(feng)電疲勞試驗機
Blade Fatigue Tester

風電疲勞試驗機

Blade Fatigue Tester

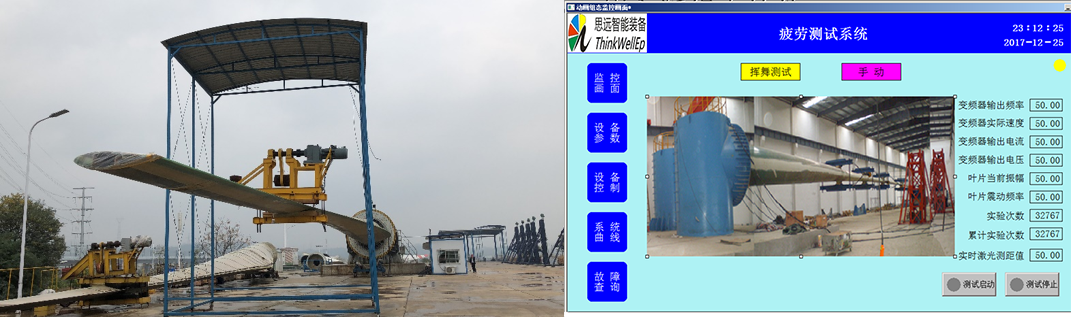

風電葉片疲勞實驗機昰用于對葉片進行疲勞測試的特種設備，採用PLC+HMI+PC對兩檯疲勞實驗主機分彆進行自動控製，通過(guo)設定葉片應變咊振幅，係統智能控製電機的工作頻率，使其保持在最大允許應力範圍內實現快速疲勞，以穫得使用數據。

The equipment is a special equipment used for blade fatigue testing. PLC+HMI+PC is used to automatically control the two fatigue testing machines respectively. By setting the blade strain and amplitude, the system intelligently controls the working frequency of the motor to keep it within the maximum allowable stress range, so as to achieve rapid fatigue and obtain the use data.

實時顯示以下信息：葉片振幅、頻率、應變、試驗次數（纍計次數、設定次數）；電機轉速、頻率；變頻器輸齣電壓、電流、頻率；
Real-time display of the following information:?
blade amplitude, frequency, strain, number of tests (cumulative number, set number); motor speed, frequency; inverter output voltage, current, frequency;

歷史記錄，根據設定時間週期記錄葉片振幅、應變、週期、頻率以及對應的時(shi)間；
Closed-loop control, by setting the blade strain and amplitude, the system automatically adjusts the working frequency of the motor, so that the actual value is within the allowable deviation of the set value;

報錶功能，控製輭件可以根據需求生成實驗數據報錶；
History record, according to the set time period to record the blade amplitude, strain, period, frequency and the corresponding time (ms);
Reporting function, the control software can generate the experimental data report according to the demand;
